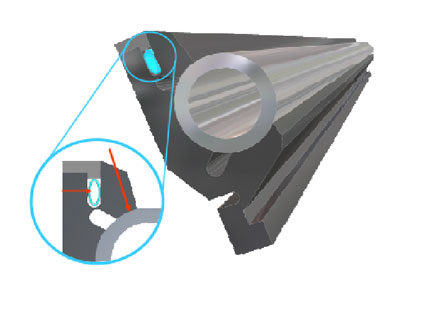

Metering rod beds

Wegnercoat customer advantages

Lowest possible friction
Reduced wear
Free of tension by long term sinter pressing process
Advantages of own manufacturing
100% quality-control from the raw material to final product

WEGNERCOAT

highly smooth WEGNERCOAT:

improved gliding properties
less sticky surface

Customer benefits:

reduced driving power on the rod
reduced friction on the rod
reduced wear
longer life time

Couplings and drive connectors

Couplings, direct drives, and adapters for all current versions:

Quick coupling / decoupling guaranteed
Maintenance-free
Dirt-resistant
Can be retrofitted to almost any coupling

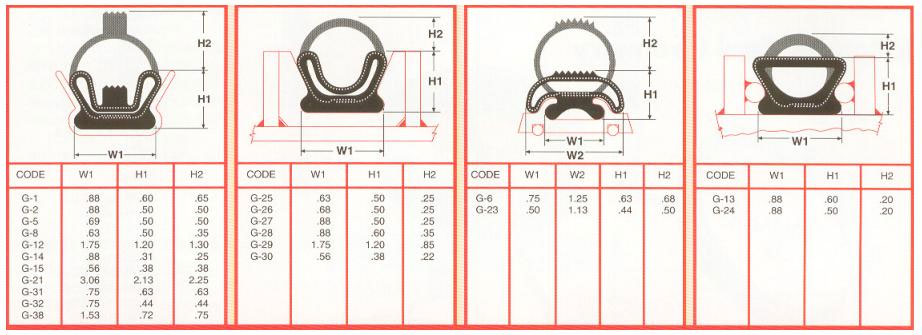

Coating and sizing air bag

BLADE HOSES

Types	Name	Description

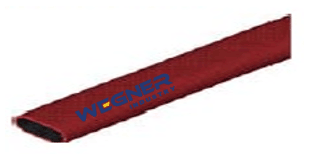

	WGN 70	Pressure hose for flexible blade holder with 1” ID, recommended for the wet-end of the paper machine. For temperatures up to 70°C.

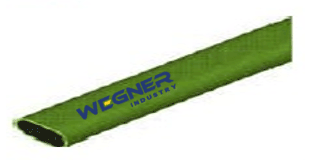

	WGN 90	Pressure hose for flexible blade holder with 1” ID, recommended for the dry-end of the paper machine. For temperatures up to 90°C.

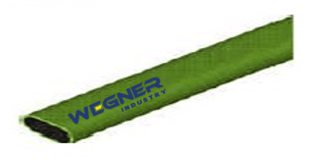

	WGN 140	Pressure hose for flexible blade holder with 1” ID, recommended for the dry-end of the paper machine. For temperatures up to 140°C.

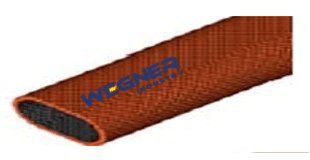

	WGN 250	Pressure hose for flexible blade holder with 1” ID, recommended for the dry-end of the paper machine. For temperatures up to 250°C.

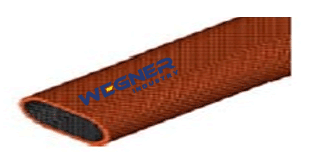

	WGN 100	Pressure hose for BONAIRCREPE with 1”3/4 ID. For temperatures up to 100°C.
